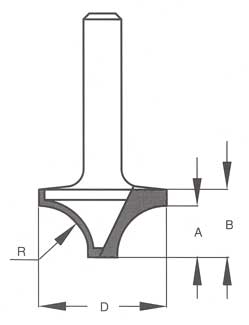

RH	Plunging Beading & Rounding Over Bits

6mm or 1/4" shank

Tool No.

R = A

D

B

mm inch mm inch mm inch

RH03004

3.2

1/8

9.5

3/8

7

9/32

RH05004

4.8

3/16

13.5

17/32

13

1/2

RH06004

6.3

1/4

17.5

11/16

13

1/2

RH08004

8.0

5/16

22.2

7/8

14

9/16

RH10004

9.5

3/8

25.4

1

16

5/8

RH12004

12.7

1/2

31.8

1-1/4

17

11/16

12mm or 1/2" shank

RH06008

6.3

1/4

17.5

11/16

13

1/2

RH08008

8.0

5/16

22.2

7/8

14

9/16

RH10008

9.5

3/8

25.4

1

16

5/8

RH12008

12.7

1/2

31.8

1-1/4

17

11/16

6mm or 1/4" shank
	Tool No.	R = A		D		B
	Tool No.	mm	inch	mm	inch	mm	inch
	RH03004	3.2	1/8	9.5	3/8	7	9/32
	RH05004	4.8	3/16	13.5	17/32	13	1/2
	RH06004	6.3	1/4	17.5	11/16	13	1/2
	RH08004	8.0	5/16	22.2	7/8	14	9/16
	RH10004	9.5	3/8	25.4	1	16	5/8
	RH12004	12.7	1/2	31.8	1-1/4	17	11/16

12mm or 1/2" shank
	RH06008	6.3	1/4	17.5	11/16	13	1/2
	RH08008	8.0	5/16	22.2	7/8	14	9/16
	RH10008	9.5	3/8	25.4	1	16	5/8
	RH12008	12.7	1/2	31.8	1-1/4	17	11/16
