RG10 | Ogee Assembly with Ball Bearing Guide 12mm or 1/2 shank |
TONGUE & GROOVE CLASSIC SETS |

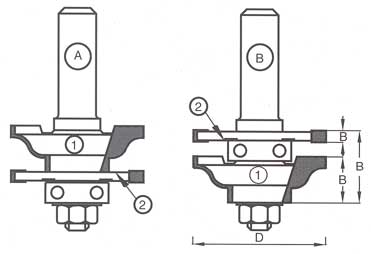

By reversing the assembly, you can use a single tool for both cuts A & B. The shims should be used for perfect alignment before and after sharpening. |
|
Description |
Tool No. |
D |
B |
|||
mm | inch | mm | inch | ||||
! |
|
Assembly |
RG10008 |
46.0 |
1-13/16 |
22.0 |
7/8 |
|
1 |
Profile cutter |
RG10000 |
46.0 |
1-13/16 |
15.0 |
19/32 |
|
2. |
Grooving cutter |
NG46040 |
46.0 |
1-13/16 |
4.0 |
5/32 |
! Available with 8mm shank
Spare Parts for RG:
Description |
Tool No. |
Arbor & Nut for RG |
NG00008 |
Arbor & Nut for RGP/RGW |
NGP0008 |
Ball Bearing |
B220080 |
Shim 0.1mm |
BS01000 |
Shim 0.05mm |
BS00500 |
Washer |
BW16080 |
