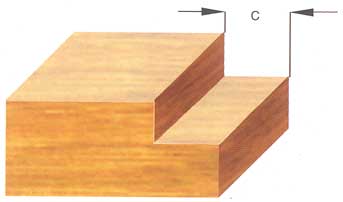

| HES | Rabbeting Flush Trim Set 2 bits-4 ball bearing guides Allows 8 different cuts |
|
|
| Description | Tool No. | C |
Ball bearing | |
| mm | inch | |||
| Set | HES8004 | |||

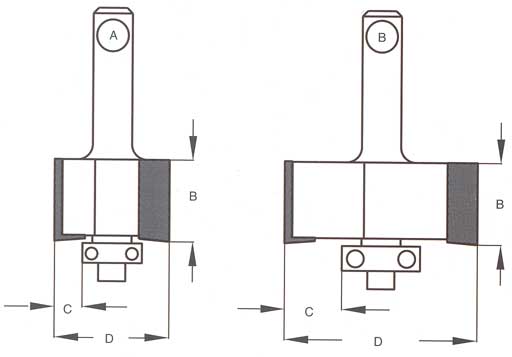

| Tool A | HE22034 | 0 | -flush | B190048 |
| D= 19mm (3/4") | 1.6 | 1/16 | B160048 | |
| B= 13mm (1/2") | 3.2 | 1/8 | B127048 | |
| 4.8 | 3/16 | B095048 | ||
| Tool B | HE22094 | 6.3 | 1/4 | B190048 |
| 8.0 | 5/16 | B160048 | ||
| D=31.8mm(1-1/4") | 9.5 | 3/8 | B127048 | |
| B =12mm (15/32") | 11.1 | 7/16 | B095048 | |
Available with 6mm, 8mm and 1/4" shank
