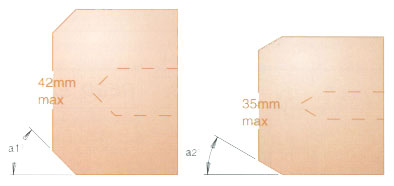

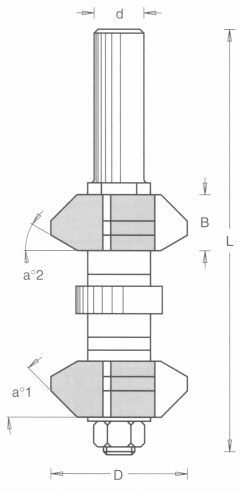

Code No. |
D |
B |
a1 |
a2 |
L |
d |
|
|
COMPLETE |
1584 00 8 |
34.8 |
108.0 |
12.7 |
|||
|
(1 3/8) |
(4 1/4) |
(1/2) |
|||||
|
Components: |
|||||||
|
Top Cutter |
1584 01 0 |
34.8 |
14.2 |
45° |
30° |
||
|
(1 3/8) |
(9/16) |
||||||
|
Bottom Cutter |
1584 02 0 |
34.8 |
14.2 |
45° |
30° |
||
|
(1 3/8) |
(9/16) |
||||||
|
Arbor and Nut |
1900 11 8 |
||||||
|
Ball Bearing |
1910 13 0 |
||||||
|
Washer |
1920 11 0 |
||||||
|
Spacer 1 mm (x3) |
1920 11 0 |
||||||
|
Spacer 3mm (x2) |
1920 15 0 |
||||||
|
Spacer 6 mm (x2) |
1920 1 6 0 |
||||||
|
Shims 0.5mm (x1) |
1920 13 0 |
||||||
|
Shims 0.1mm (x4) |
1921 00 0 |
