Set No. |
Set No. |
Set No. |
|
|
Complete |
1582 00 8 |
1581 00 8 |
1580 00 8 |
|

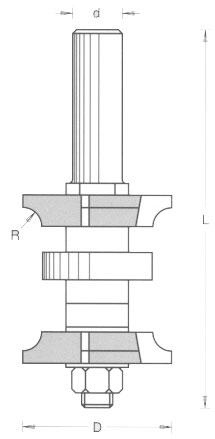

D |
47.2 |
40.7 |
38.1 |
|
(1 55/64) |
(1 19/32) |
(1 1/2) |
|
|
R |
9.6 |
6.35 |
4.8 |
|
(3/8) |
(14) |
(3/16) |
|
|
L |
96.0 |
96.0 |
96.0 |
|
(3 25/32) |
(3 25/32) |
(3 25/32) |
|
|
d |
12.7 |
12.7 |
12.7 |
|
(1/2) |
(1/2) |
(1/2) |
|
|
Components: |
|||
|
Top Cutter |
1580 84 0 |
1580 64 0 |
1580 94 0 |
|
Bottom Cutter |
1580 83 0 |
1580 63 0 |
1580 95 0 |
|
Arbor and Nut |
1900 09 8 |
1900 09 8 |
1900 09 8 |
|
Ball Bearing |
1910 16 0 |
1910 16 0 |
1910 16 0 |
|
Washer |
1920 11 0 |
1920 11 0 |
1920 11 0 |
|
Spacer 6mm |
1920 16 0 |
1920 16 0 |
|
|
Spacer 3mm |
1920 15 0 |
1920 15 0 |
1920 15 0 (x2) |
|
Spacer 1 mm |
1920 11 0 (x2) |
1920 11 0 (x4) |
1920 11 0 (x5) |
|
Shims 0.5mm |
1920 13 0 (x2) |
1920 13 0 (x2) |
1920 13 0 (x2) |
