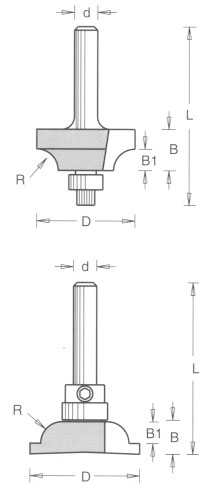

Code No. |
D |
R |
B |
B1 |
L |
d |
1490 75 4 |
Set No. |
  |   |   |   |   |
1490 73 4 * |
27.5 |
6.0 |
11.5 |
6.0 |
50.0 |
6.35 |
  |
(1 5/64) |
(15/64) |
(29/64) |
(15/64) |
(1 31/32) |
(1/4) |
1492 74 4 ** |
30.7 |
6.0 |
9.0 |
6.0 |
48.0 |
6.35 |
  |
(1 13/64) |
(15/64) |
(23/64) |
(15/64) |
(1 57/64) |
(1/4) |
# All these marked tools are available also with 8mm shank.
* 003
** 011

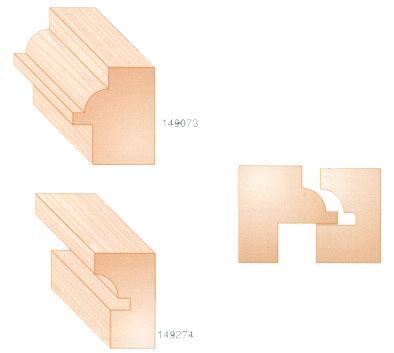

Tenon & groove must be cut separately.
