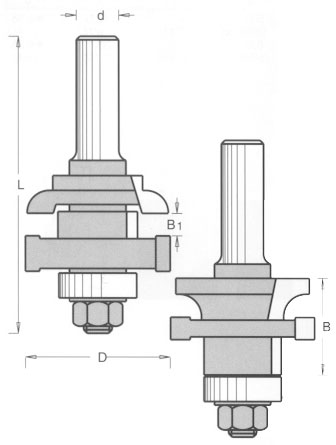

D |
B |
L |
d |
|||
|
COMPLETE |
1450 03 8 |
|||||
|
Cutter A |
1451 03 8 |
41.0 |
27.0 |
84.0 |
12.7 |
|
|
(1 5/8) |
(1 1/16) |
(35/16) |
(1/2) |
|||
|
Cutter B |
1452 03 8 |
41.0 |
27.0 |
84.0 |
12.7 |
|
|
(1 5/8) |
(1 1/16) |
(35/16) |
(1/2) |
|||
|
Components |
A |
B |
||||
|
Code No |
D |
B |
Code No. |
D |
B |
|
|
Profile Cutter |
1450 23 0 |
40.0 |
10.7 |
1450 13 0 |
38.0 |
11.6 |
|
(1 37/64) |
(27/64) |
(1 1/2) |
(29/64) |
|||
|
Groover |
1450 12 0 |
22.5 |
7.3 |
1431 14 0 |
41.0 |
6.35 |
|
(7/8) |
(9/32) |
(1 5/8) |
(1/4) |
|||
|
Groover |
1431 06 0 |
41.0 |
10.2 |
1450 22 0 |
22.0 |
11.0 |
|
(1 5/8) |
(13/32) |
(7/8) |
(7/16) |
|||
|
Arbor and Nut |
1900 13 8 |
1900 13 8 |
||||
|
Ball Bearing |
1910 13 0 |
1910 13 0 |
||||
|
Washer |
1920 11 0 |
(x4) |
1920 11 0 |
(x2) |
||
|
Shims 0.1mm |
1921 00 0 |
(x2) |
1921 00 0 |
(x3) |
||
|
Shims 0.05mm |
1920 50 0 |
(x2) |
1920 50 0 |
(X1) |
|

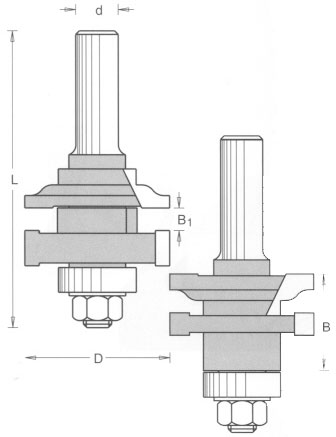

Code No. |
D |
B |
L |
d |
||
|
COMPLETE |
1450 04 8 |
|||||
|
Cutter A |
1451 04 8 |
41.0 |
27.0 |
84.0 |
12.7 |
|
|
(1 5/8) |
(1 1/16) |
(35/16) |
(1/2) |
|||
|
Cutter B |
1452 04 8 |
41.0 |
27.0 |
84.0 |
12.7 |
|
|
(1 5/8) |
(1 1/16) |
(35/16) |
(1/2) |
|||
|
Components |
A |
B |
||||
|
Code No |
D |
B |
Code No. |
D |
B |
|
|
Profile Cutter |
1450 24 0 |
40.0 |
10.7 |
1450 14 0 |
38.0 |
11.6 |
|
(1 37/64) |
(27/64) |
(1 1/2) |
(29/64) |
|||
|
Groover |
1450 12 0 |
22.5 |
7.3 |
1431 14 0 |
41.0 |
6.35 |
|
(7/8) |
(9/32) |
(1 5/8) |
(1/4) |
|||
|
Groover |
1431 06 0 |
41.0 |
10.2 |
1450 22 0 |
22.0 |
11.0 |
|
(1 5/8) |
(13/32) |
(7/8) |
(7/16) |
|||
|
Arbor and Nut |
1900 13 8 |
1900 13 8 |
||||
|
Ball Bearing |
1910 13 0 |
1910 13 0 |
||||
|
Washer |
1920 11 0 |
(X4) |
1920 11 0 |
(x2) |
||
|
Shims 0.1mm |
1921 00 0 |
(X2) |
1921 00 0 |
(x3) |
||
|
Shims 0.05mm |
1920 50 0 |
(x2) |
1920 50 0 |
(X1) |
