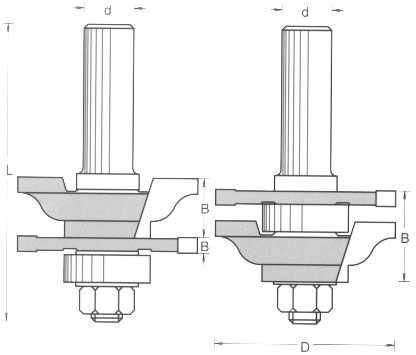

Code No. |
D |
B |
L |
d |
COMPLETE |
1420 01 8 |
46.0 |
22.0 |
76.2 |
12.7 |
  |   |
(1 13/16) |
(7/8) |
(3") |
(1/2) |
Components |
  |   |   |   |   |
Profile Groover |
1421 01 0 |
46.0 |
15.0 |
  |   |
  |   |
(1 13/16) |
(19/32) |
  |   |
Groover |
1421 04 0 |
46.0 |
4.0 |
  |   |
  |   |
(1 13/16) |
(5/32) |
  |   |
Arbor and Nut |
1900 04 8 |
  |   |   |   |
Ball Bearing |
1910 13 0 |
  |   |   |   |
Washer |
1920 11 0 |
  |   |   |   |
Shims 0.1mm(x3) |
1921 00 0 |
  |   |   |   |
Shims 0.05mm(x3) |
1920 50 0 |
  |   |   |   |
These tools are available also with 8mm shank.
|
  |

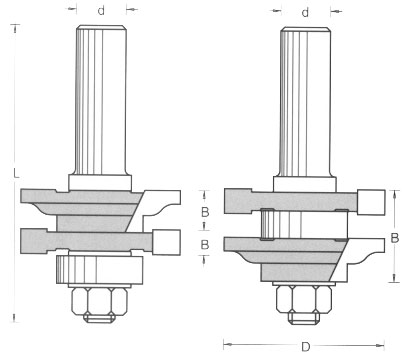

Code No. |
D |
B |
L |
d |
COMPLETE |
1430 01 8 |
41.0 |
22.0 |
76.2 |
12.7 |
  |   |
(1 5/8) |
(7/8) |
(3") |
(1/2) |
Components |
  |   |   |   |   |
Profile Cutter |
1431 01 0 |
41.0 |
11.0 |
  |   |
  |   |
(1 5/8) |
(7/16) |
  |   |
Groover |
1431 04 0 |
41.0 |
6.35 |
  |   |
  |   |
(1 5/8) |
(1/4) |
  |   |
Arbor and Nut |
1900 04 8 |
  |   |   |   |
Ball Bearing |
1910 13 0 |
  |   |   |   |
Washer |
1920 11 0 |
  |   |   |   |
Shims 0.1mm(x3) |
1921 00 0 |
  |   |   |   |
Shims 0.05mm(x3) |
1920 50 0 |
  |   |   |   |
These tools are available also with 8 mm shank.
|
  |

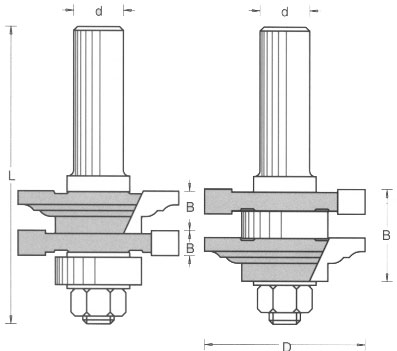

Code No |
D |
B |
L |
d |
COMPLETE |
1432 01 8 |
41.0 |
22.0 |
76.2 |
12.7 |
  |   |
(1 5/8) |
(7/8) |
(3") |
(1/2) |
Components |
  |   |   |   |   |
Profile Groover |
1431 11 0 |
41.0 |
11.0 |
  |   |
  |   |
(1 5/8) |
(7/16) |
  |   |
Groover |
1431 04 0 |
41.0 |
6.35 |
  |   |
  |   |
(1 5/8) |
(1/4) |
  |   |
Arbor and Nut |
1900 04 8 |
  |   |   |   |
Ball Bearing |
1910 13 0 |
  |   |   |   |
Washer |
1920 11 0 |
  |   |   |   |
Shims 0.1 mm(x3) |
1921 00 0 |
  |   |   |   |
Shims 0.05mm(x3) |
1920 50 0 |
  |   |   |   |
These tools are available also with 8mm shank.
|
  |

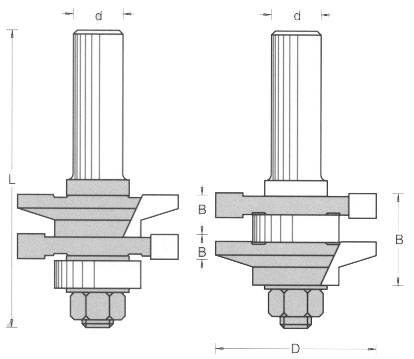

Code No. |
D |
B |
L |
d |
COMPLETE |
1433 01 8 |
41.0 |
22.0 |
76.2 |
12.7 |
  |   |
(1 5/8) |
(7/8) |
(3") |
(1/2) |
Components |
  | ||||
Profile Groover |
1431 21 0 |
41.0 |
11.0 |
  |   |
  |
1431 04 0 |
(1 5/8) 41.0 |
(7/16) |
  |   |
Groover |
6.35 |
  |   | ||
  |   |
(1 5/8) |
(1/4) |
  |   |
Arbor and Nut |
1900 04 8 |
  |   |   |   |
Ball Bearing |
1910 13 0 |
  |   |   |   |
Washer |
1920 11 0 |
  |   |   |   |
Shims 0.1mm(x3) |
1921 00 0 |
  |   |   |   |
Shims 0.05mm(x3) |
1920 50 0 |
  |   |   |   |
These tools are available also with 8mm shank.
|
  |
Code No. |
D |
B |
L |
d |
COMPLETE |
1434 01 8 |
41.0 |
19.0 |
76.2 |
12.7 |
  |   |
(1 5/8) |
(3/4) |
(3") |
(1/2) |
Components |
  |   |   |   |   |
Groover (x2) |
1431 04 0 |
41.0 |
6.35 |
  |   |
  |   |
(1 5/8) |
(1/4) . |
  |   |
Arbor and Nut |
1900 04 8 |
  |   |   |   |
Ball Bearing |
1910 13 0 |
  |   |   |   |
Washer |
1920 11 0 |
  |   |   |   |
Spacer 6.0mm(x2) |
1920 16 0 |
  |   |   |   |
Spacer 1.0mm(x1) |
1920 11 0 |
  |   |   |   |
Shims 0.1mm(x4) |
1921 00 0 |
  |   |   |   |
Shims 0.05mm(x2) |
1920 50 0 |
  |   |   |   |
These tools are available also with 8mm shank.
|
  |

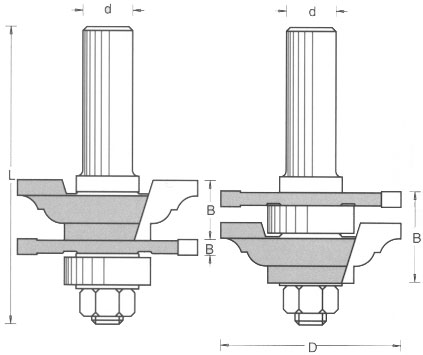

Code No. |
D |
B |
L |
d |
COMPLETE |
1440 01 8 |
46.0 |
22.0 |
76.2 |
12.7 |
  |   |
(1 13/16) |
(7/8) |
(3") |
(1/2) |
Components |
  |   |   |   |   |
Profile Groover |
1441 01 0 |
46.0 |
15.0 |
  |   |
  |   |
(1 13/16) |
(19/32) |
  |   |
Groover |
1421 04 0 |
46.0 |
4.0 |
  |   |
  |   |
(1 13/16) |
(5/32) |
  |   |
Arbor and Nut |
1900 04 8 |
  |   |   |   |
Ball Bearing |
1910 13 0 |
  |   |   |   |
Washer (x2) |
1920 11 0 |
  |   |   |   |
Shims 0.1 mm(x3) |
1921 00 0 |
  |   |   |   |
Shims 0.05mm(x3) |
1920 50 0 |
  |   |   |   |
These tools are available also with 8mm shank.
