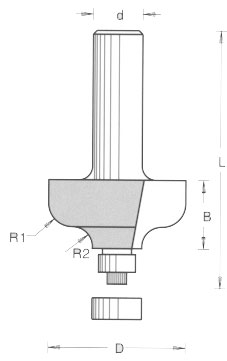

Code No. |
D |
R1 |
R2 |
B |
L |
d |
|
1380 05 4 *** |
16.3 |
2.0 |
2.0 |
9.5 |
43.0 |
# 6.35 |
|
(41.64) |
(5/64) |
(5/64) |
(3/8) |
(1 11/16) |
(1/4) |
|
|
1380 02 4 * |
28.6" |
4.5 |
4.0 |
12.7 |
52.0 |
# 6.35 |
|
(1 1/8) |
(11/64) |
(5/32) |
(1/2) |
(2 1/16) |
(1/4) |
|
|
1380 01 4 * |
34.9 |
6.0 |
5.0 |
17.5 |
57.0 |
# 6.35 |
|
(1 3/8) |
(15/64) |
(3/16) |
(11/16) |
(2 1/4) |
(1/4) |
|
|
1380 02 8 * |
28.6 |
4.5 |
4.0 |
12.7 |
62.0 |
12.7 |
|
(1 1/8) |
(11/64) |
(5/32) |
(1/2) |
(2 7/16) |
(1/2) |
|
|
1380 01 8 * |
34.9 |
6.0 |
5.0 |
17.5 |
67.0 |
12.7 |
|
(1 3/8) |
(15/64) |
(3/16) |
(11/16) |
(2 5/8) |
(1/2) |
|
|
1380 03 4 ** |
28.6 |
4.5 |
4.0 |
12.7 |
51.0 |
# 6.35 |
|
(1 1/8) |
(11/64) |
(5/32) |
(1/2) |
(2") |
(1/4) |
|
|
1380 04 4 ** |
34.9 |
6.0 |
5.0 |
17.5 |
56.6 |
# 6.35 |
|
(1 3/8) |
(15/64) |
(3/16) |
(11/16) |
(2 3/16) |
(1/4) |
|
|
1380 03 8 ** |
28.6 |
4.5 |
4.0 |
12.7 |
60.0 |
12.7 |
|
(1 1/8) |
(11/64) |
(5/32) |
(1/2) |
(2 3/8) |
(1/2) |
|
|
1380 04 8 ** |
34.9 |
6.0 |
5.0 |
17.5 |
65.0 |
12.7 |
|
(1 3/8) |
(15/64) |
(3/16) |
(11/16) |
(2 9/16) |
(1/2) |
# All these marked tools are available also with 8mm shank.
* 004
** 003
*** 001
