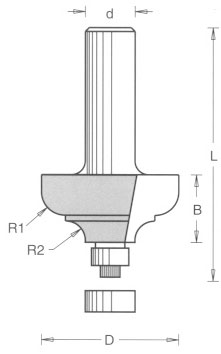

Code No. |
D |
R1 |
R2 |
B |
L |
d |
|
1350 02 4 * |
28.6 |
4.5 |
4.0 |
12.7 |
52.0 |
# 6.35 |
|
(1 1/8) |
(11/64) |
(5/32) |
(1/2) |
(2 7/16); |
(1/4) |
|
|
1350 01 4 * |
34.9 |
6.0 |
4.8 |
17.5 |
56.0 |
# 6.35 |
|
(1 3/8) |
(15/64) |
(3/16) |
(11/16) |
(2 3/16) |
(1/4) |
|
|
1350 02 8 * |
28.6 |
4.5 |
4.0 |
12.7 |
62.0 |
12.7 |
|
(1 1/8) |
(11/64) |
(5/32) |
(1/2) |
(2 7/16) |
(1/2) |
|
|
1350 01 8 * |
34.9 |
6.0 |
4.8 |
17.5 |
65.0 |
12.7 |
|
(1 3/8) |
(15/64) |
(3/16) |
(11/16) |
(2 9/16) |
(1/2) |
|
|
1350 07 8 * |
38.0 |
4.7 |
8.0 |
16.0 |
65.0 |
12.7 |
|
(1 1/2) |
(3/16) |
(5/16) |
(5/8) |
(2 9/16) |
(1/2) |
|
|
1350 03 4 ** |
28.6 |
4.0 |
4.0 |
12.7 |
51.0 |
# 6.35 |
|
(1 1/8) |
(5/32) |
(5/32) |
(1/2) |
(2") |
(1/4) |
|
|
1350 04 4 ** |
34.9 |
6.0 |
4.8 |
17.5 |
55.0 |
# 6.35 |
|
(1 3/8) |
(15/64) |
(3/16) |
(11/16) |
(2 3/16) |
(1/4) |
|
|
1350 03 8 ** |
28.6 |
4.0 |
4.0 |
12.7 |
60.0 |
12.7 |
|
d 1/8) |
(5/32) |
(5/32) |
(1/2) |
(2 3/8) |
(1/2) |
|
|
1350 04 8 ** |
34.9 |
6.0 |
4.8 |
17.5 |
64.6 |
12.7 |
|
(1 3/8) |
(15/64) |
(3/16) |
(11/16) |
(2 1/2) |
(1/2) |
|
|
1350 08 8 ** |
38.0 |
4.7 |
8.0 |
16.0 |
65.0 |
12.7 |
|
(1 1/2) |
(3/16) |
(5/16) |
(5/8) |
(2 9/76) |
(1/2) |
|
|
1350 06 8 * |
51.0 |
9.5 |
9.5 |
23.0 |
72.0 |
12.7 |
|
(2") |
(3/8) |
(3/8) |
(29/32; |
(2 13/16) |
(1/2) |
# All these marked tools are available also with 8mm shank.
