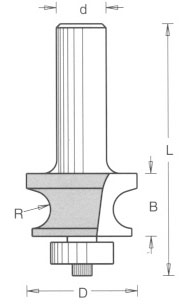

Code No. |
D |
R |
B |
L |
d |
|
1241 05 4 ** |
23.0 |
2.0 |
10.3 |
50.0 |
6.35 |
|
(29/32) |
(5/64) |
(13/32) |
(1 31/32) |
(7/4; |
|
|
1241 08 4 * |
22.2 |
3.2 |
14.3 |
54.0 |
# 6.35 |
|
(7/8) |
(1/8) |
(9/76) |
(2 1/8) |
(1/4) |
|
|
1241 11 4 ** |
28.2 |
4.8 |
15.9 |
57.0 |
# 6.35 |
|
(1 7/64) |
(3/16) |
(5/8) |
(2 1/4) |
(1/4) |
|
|
1241 13 4 ** |
31.8 |
6.35 |
19.1 |
58.0 |
# 6.35 |
|
(1 1/4) |
(1/4) |
(3/4) |
(2 5/16) |
(1/4) |
|
|
1241 08 8 * |
22.2 |
3.2 |
14.3 |
63.5 |
12.7 |
|
(7/8) |
(1/8) |
(9/16) |
(2 1/2) |
(1/2) |
|
|
1241 11 8 ** |
28.2 |
4.8 |
15.9 |
66.5 |
12.7 |
|
(1 7/64) |
(316) |
(5/8) |
(2 5/8) |
(1/2) |
|
|
1241 13 8 ** |
31.8 |
6.35 |
19.1 |
67.0 |
12.7 |
|
(1 1/4) |
(1/4) |
(3/4) |
(2 5/8) |
(1/2) |
|
|
1241 17 8 ** |
38.1 |
9.5 |
25.4 |
74.0 |
12.7 |
|
(1 1/2) |
(3/8) |
(1") |
(2 15/16) |
(1/2) |
# All these marked tools are available also with 8mm shank.
* 004
** 008
