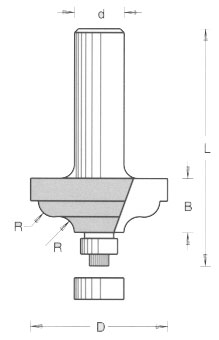

Code No. |
D |
R |
B |
L |
d |
|
1210 01 4 * |
34.9 |
4.0 |
13.5 |
53.0 |
# 6.35 |
|
(1 3/8) |
(5/32) |
(17/32) |
(2 1/16) |
(1/4) |
|
|
1210 07 4 ** |
34.9 |
4.0 |
13.5 |
51.0 |
# 6.35 |
|
(1 3/8) |
(5/32) |
(17/32) |
(2") |
(1/4) |
|
|
1210 01 8 * |
34.9 |
4.0 |
13.5 |
63.5 |
12.7 |
|
(1 3/8) |
(5/32) |
(17/32) |
(2 1/2) |
(1/2) |
|
|
1210 07 8 ** |
34.9 |
4.0 |
13.5 |
61.0 |
12.7 |
|
(1 3/8) |
(5/32) |
(17/32) |
(2 3/8) |
(1/2) |
|
|
1210 04 8 * |
41.3 |
6.35 |
19.1 |
68.0 |
# 12.7 |
|
(1 5/8) |
(1/4) |
(3/4) |
(2 11/16) |
(1/2) |
|
|
1210 10 8 ** |
41.3 |
6.35 |
19.1 |
67.0 |
12.7 |
|
(1 5/8) |
(1/4) |
(3/4) |
(2 5/8) |
(1/2) |
|
|
1210 14 8 ** |
57.2 |
9.5 |
25.4 |
75.0 |
12.7 |
|
(2 1/4) |
(3/8) |
(1") |
(2 15/16) |
(1/2) |
|
|
1210 15 8 * |
57.2 |
9.5 |
25.4 |
73.0 |
12.7 |
|
(2 1/4) |
(3/8) |
(1") |
(2 7/8) |
(1/2) |
# All these marked tools are available also with 8mm shank.
* 004
** 003
