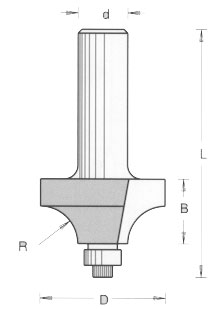

Code No. |
D |
R |
B |
L |
d |
|
1190 01 4 |
15.9 |
1.6 |
7.9 |
46.0 |
# 6.35 |
|
(5/8) |
(1/16) |
(5/16) |
(1 13/16) |
(1/4) |
|
|
1190 04 4 |
19.1 |
3.2 |
9.5 |
49.0 |
# 6.35 |
|
(3/4) |
(1/8) |
(3/8) |
(1 15/16) |
(1/4) |
|
|
1190 07 4 |
22.2 |
4.8 |
12.7 |
51.0 |
# 6.35 |
|
(7/8) |
(3/16) |
(1/2) |
(2") |
(1/4) |
|
|
1190 10 4 |
25.4 |
6.35 |
12.7 |
51.0 |
# 6.35 |
|
(1") |
(1/4) |
(1/2) |
(2 1/16) |
(1/4) |
|
|
1190 13 4 |
28.6 |
7.9 |
13.5 |
52.0 |
# 6.35 |
|
(1 1/8) |
(5/16) |
(17/32) |
(2 1/16) |
(1/4) |
|
|
1190 16 4 |
31.8 |
9.5 |
15.9 |
55.5 |
# 6.35 |
|
(1 1/4) |
(3/8) |
(5/8) |
(2 3/16) |
(1/4) |
|
|
1190 19 4 |
38.1 |
12.7 |
19.1 |
57.0 |
# 6.35 |
|
(1 1/2) |
(1/2) |
(3/4) |
(2 1/4) |
(1/4) |
# All these marked tools are available also with 8mm shank.
