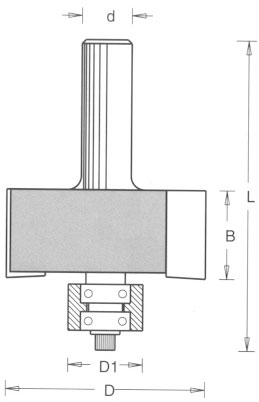

Code No. |
D |
B |
A |
L |
d |
|
1146 10 8 |
50.8 |
22.5 |
15.9 |
78.0 |
12.7 |
|
(2") |
(7/8) |
(7/8) |
(3 5/64) |
(1/2) |
|
Components |
|
|
1910 03 0 |
Ball Bearings (2) |
|
1950 01 0 |
Washer |
|
1920 27 0 |
Spacer 2.2mm |
|
1930 04 0 |
Screw |
|
1929 81 0 |
Ring 19.0 |
|
Selection of rings: |
||
|
D1 |
A |
|
|
1929 90 0 |
47.6 |
1.6 |
|
1929 89 0 |
44.4 |
3.2 |
|
1929 88 0 |
41.3 |
4.75 |
|
1929 95 0 |
39.9 |
5.45 |
|
1929 87 0 |
38.1 |
6.35 |
|
1929 86 0 |
34.9 |
7.95 |
|
1929 94 0 |
32.5 |
9.25 |
|
1929 85 0 |
31.7 |
9.55 |
|
1929 84 0 |
28.6 |
11.1 |
|
1929 93 0 |
27.0 |
11.9 |
|
1929 83 0 |
25.4 |
12.7 |
|
1929 82 0 |
22.2 |
14.3 |
|
1929 92 0 |
20.6 |
15.1 |
|
1929 81 0 |
19.0 |
15.9 |
|
1929 80 0 |
15.9 |
17.45 |
|
1929 91 0 |
14.3 |
18.25 |
|
The best solution for rabbeting For simple operation with the help of one basic tool and a series of rings of varying diameters, you can produce steps in the wood of different widths from 1.2mm to 19mm widths and up to 22mm (7/8") high. The design of the tool is planned for strenuous work while ensuring the maximum safety of the user.
|
