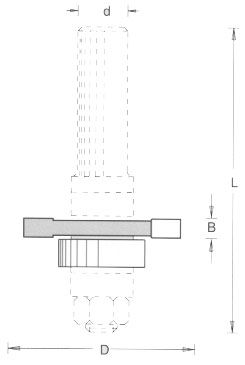

1082-1083 SLOTTING CUTTER-Arbor Type



Two Wings - mm



Code No.

B

D

d1

Code No.

B

D

d1

1083 01 0

1.5

40.0

6.35

1082 01 0

1.5

40.0

6.0

1083 02 0

2.0

40.0

6.35

1082 02 0

2.0

40.0

6.0

1083 03 0

2.5

40.0

6.35

1082 03 0

2.5

40.0

6.0

1083 04 0

3.0

40.0

6.35

1082 04 0

3.0

40.0

6.0

1083 05 0

4.0

40.0

6.35

1082 05 0

4.0

40.0

6.0

1083 06 0

5.0

40.0

6.35

1082 06 0

5.0

40.0

6.0

1083 07 0

6.0

40.0

6.35

1082 07 0

6.0

40.0

6.0

These sets are also available with arbors 1900 10 3, 1900 10 5. page No. 206.

These sets are also available with arbors 1900 20 3, 1900 20 5. page No. 206.

The Code No. refers to slotting cutter only. If you wish to order slotting cutter assembled on arbor, change the last digit of the catalogue number according to the following arbor shaft sizes:3=6.0mm, 4=1/4", 5=8.0mm, 8=1/2".

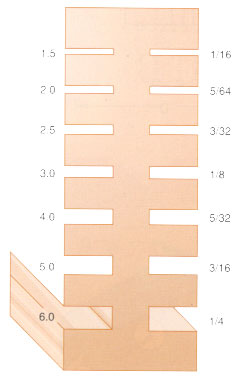

  dim1082-2.jpg dim1082-3.jpg
