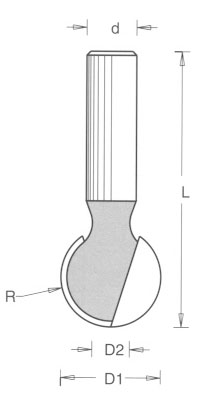

Code No. |
D1 |
D2 |
R |
L |
d |
|

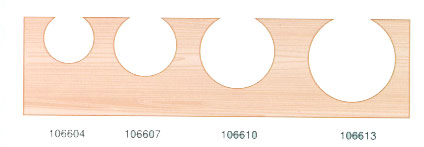

1066 04 8 |
12.7 |
6.35 |
6.35 |
58.0 |
12.7 |
|
(1/2) |
(1/4) |
(1/4) |
(2 9/32) |
(1/2) |
|
|
1066 07 8 |
16.0 |
7.0 |
8.0 |
62.0 |
12.7 |
|
(5/8) |
(9/32) |
(5/16) |
(2 7/16) |
(7/2) |
|
|
1066 10 8 |
19.0 |
8.0 |
9.5 |
64.0 |
12.7 |
|
(3/4) |
(5/16) |
(3/8) |
(2 1/2) |
(1/2) |
|
|
1066 13 8 |
22.2 |
8.0 |
11.1 |
68.0 |
12.7 |
|
(7/8) |
(5/16) |
(7/16) |
(2 11/16) |
(7/2; |
|
|

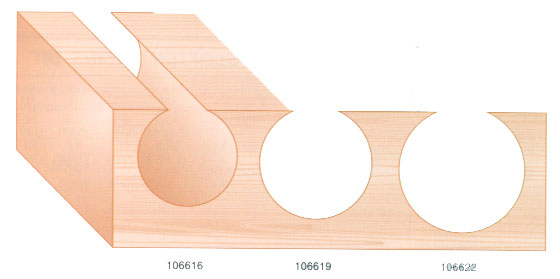

1066 16 8 |
25.4 |
8.7 |
12.7 |
70.0 |
12.7 |
|
(1") |
(11/32) |
(1/2) |
(2 3/4) |
(1/2) |
|
|
1066 19 8 |
28.6 |
10.3 |
14.3 |
73.0 |
12,7 |
|
(1 1/8) |
(13/32) |
(9/16) |
(2 7/8) |
(1/2) |
|
|
1066 22 8 |
32.0 |
11.1 |
16.0 |
75.0 |
12.7 |
|
(1 1/4) |
(7/16) |
(5/8) |
(2 15/16) |
(1/2) |
