106 DISH CARVING BIT

Code No.	D	R	B	L	d
1062 62 4 *	12.7	3.2	12.7	54.0	6.35
	(1/2)	(1/8)	(1/2)	(2 1/8)	(1/4)
1062 63 4 **	19.1	6.35	16.0	59.0	6.35
	(3/4)	(1/4)	(5/8)	(2 5/16)	(1/4)
1062 63 8 ***	19.1	6.35	16.0	67.0	12.7
	(3/4)	(1/4)	(5/8)	(2 5/8)	(1/2)
1062 69 8 ****	28.6	6.35	16.0	67.0	12.7
	(1 1/8)	(1/4)	(5/8)	(2 5/8)	(1/2)

$imaged\dim106-1.jpg$ $imaged\dim106-2.jpg$

*       011
**     013
***   014
**** 019

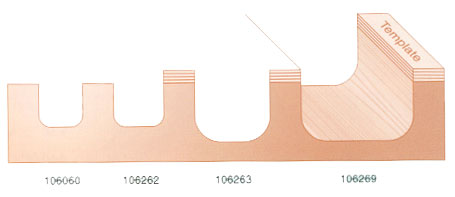

Code No.	D	R	B	L	d
1060 60 4	11.0	3.2	12.7	54.0	6.35
	(7/16)	(1/8)	(1/2)	(2 1/8)	(1/4)
1060 62 4	12.7	3.2	12.7	54.0	6.35
	(1/2)	(1/8)	(1/2)	(2 1/8)	(1/4)
1060 63 4	19.1	6.35	16.0	59.0	6.35
	(3/4)	(1/4)	(5/8)	(2 5/16)	(1/4)
1060 63 8	19.1	6.35	16.0	67.0	12.7
	(3/4)	(1/4)	(5/8)	(2 5/8)	(1/2)
1060 69 8	28.6	6.35	16.0	67.0	12.7
	(1 1/8)	(1/4)	(5/8)	(2 5/8)	(1/2)

$imaged\dim106-3.jpg$
